ICS COPPERRequest a quote

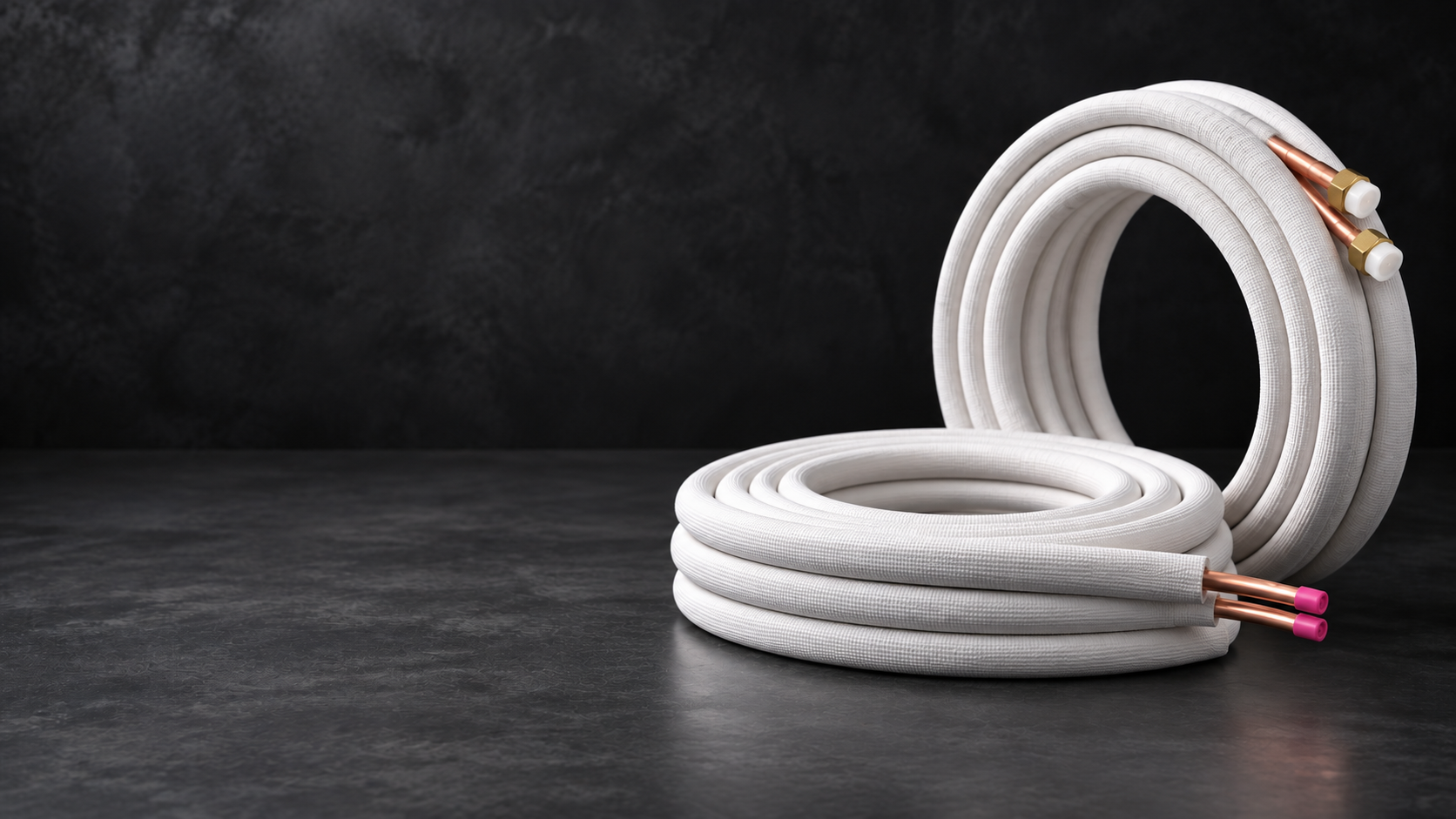

Insulated copper coils showing capped ends and flare nuts with protective plugs

Copper tube supply · Canada

Built for the line.
Ready for the field.

Factory-insulated C12200 copper tube for HVAC and refrigeration—specified to ASTM B280, with supporting test documentation available upon request.

Explore the product Review test standards
C12200Phosphorus-deoxidized copper
8–13 mmInsulation options
ContainerShipment quantities available
01 / Product

One complete line set.
No improvisation.

Soft-annealed refrigeration copper paired with durable, three-layer embossed cross-linked polyethylene insulation.

Each coil is prepared for efficient installation: dehydrated, sealed and carton packed. Supply configurations are available with capped ends, or with flared ends and nuts fitted.

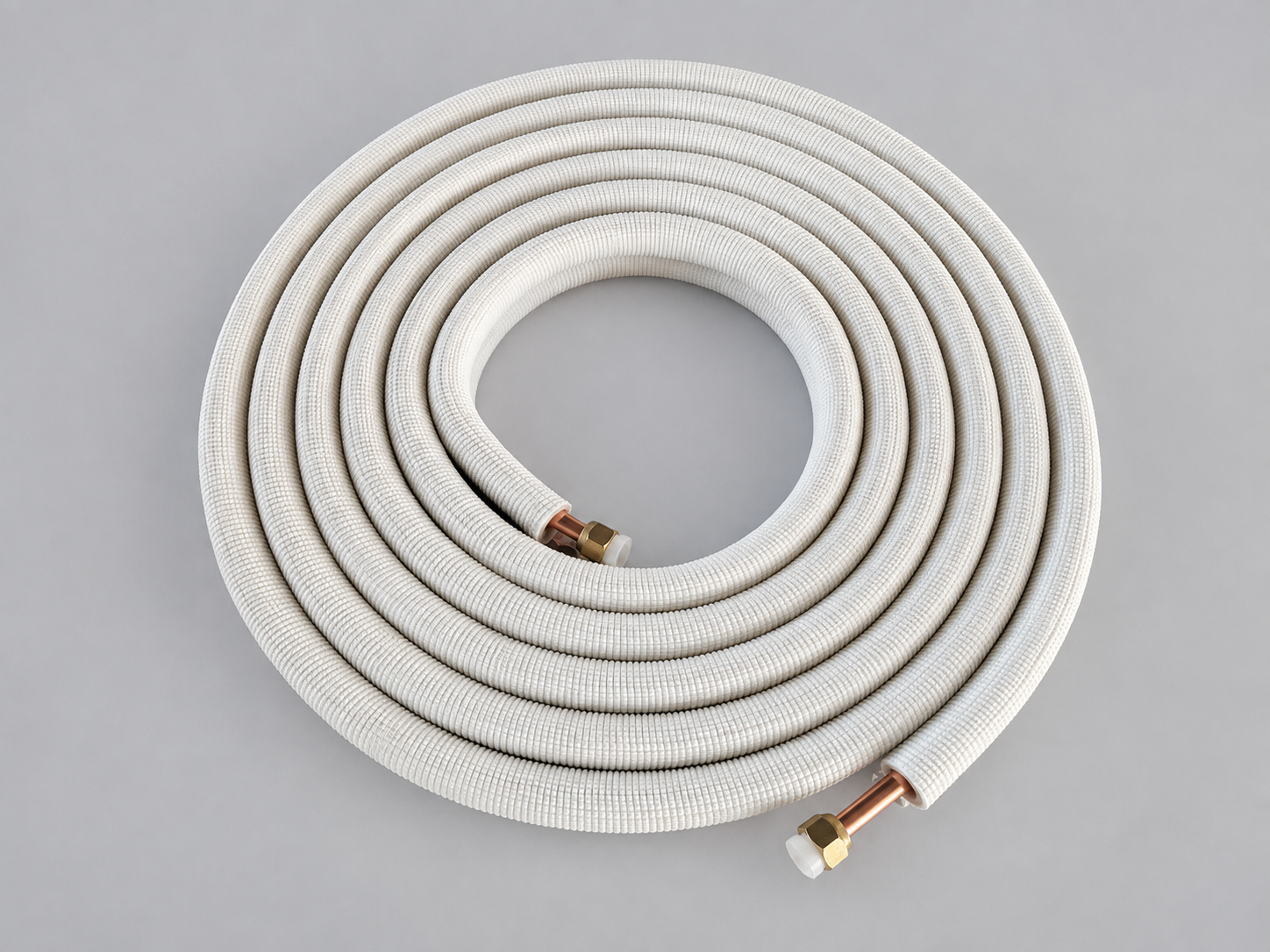

Fully insulated copper line set with flare nuts fitted
01Flared and fittedInsulated pair coil with flare nuts on each end.

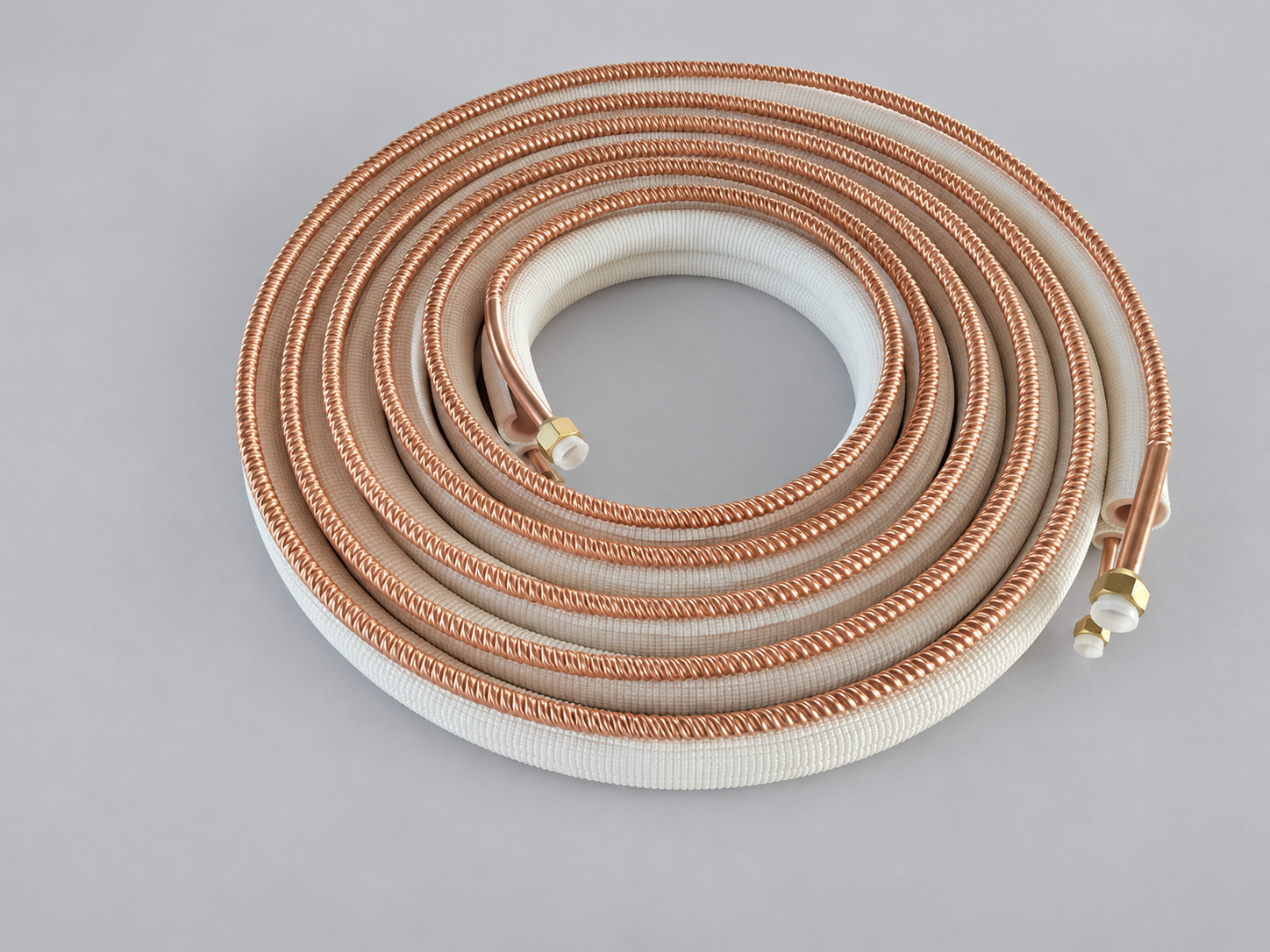

Partially exposed corrugated copper line set with flare nuts fitted
02Product constructionExposed copper and insulation detail with flare nuts fitted.

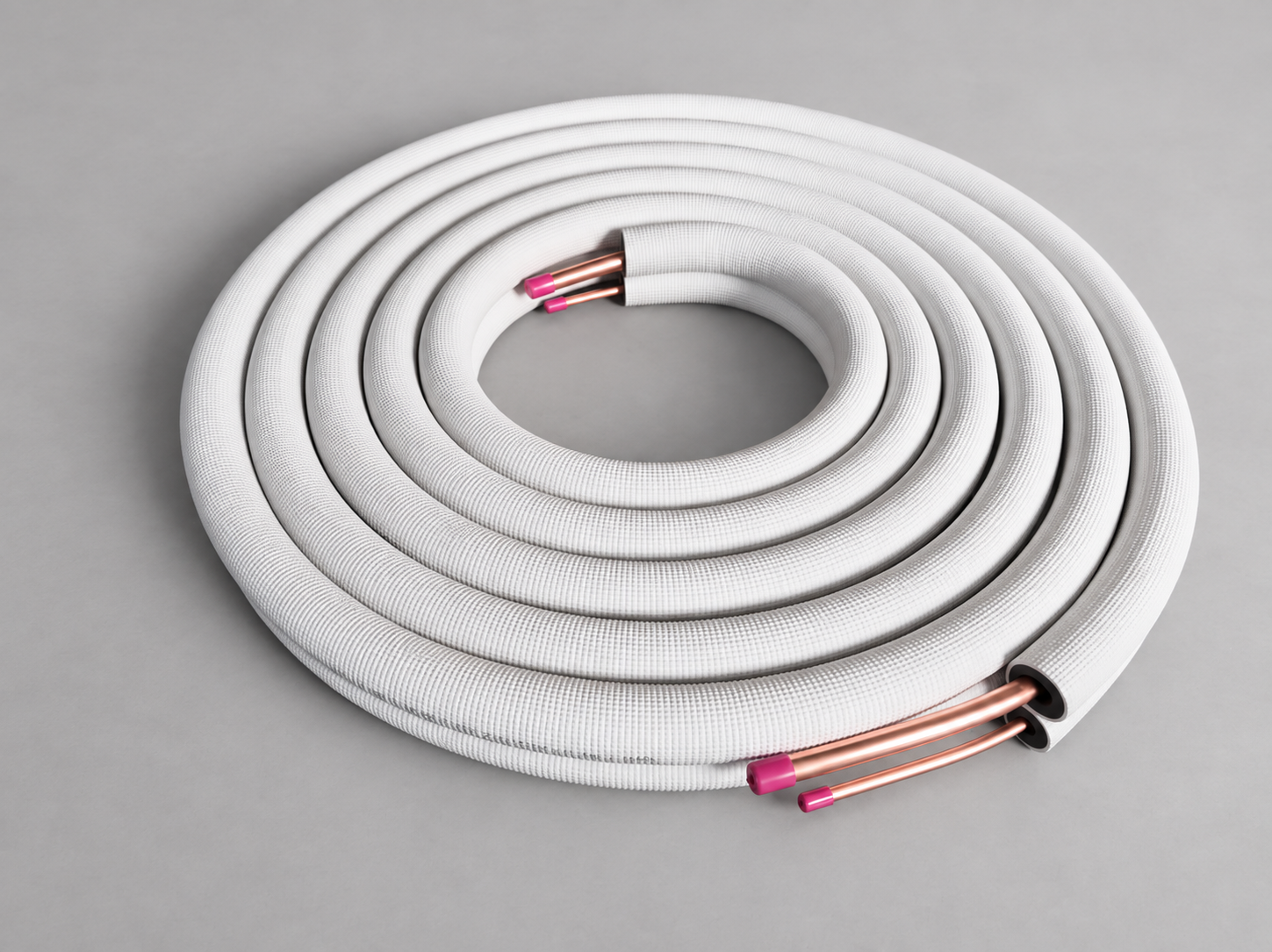

Fully insulated copper line set with dehydrated and capped ends
03Dehydrated and cappedPlain tube ends securely sealed without flare nuts.
01Insulated copper tubes in pair coil, with flaring and nuts on each end, for split air conditioning.

Soft-annealed C12200 copper tube conforming to ASTM B280, protected by three-layer white embossed cross-linked PE insulation and packed in cartons.

InsulationRoom A/C: 8, 9 or 10 mm · Central A/C: usually 13 mm
StandardsUL 94 HF-1 · UL 723 25/50

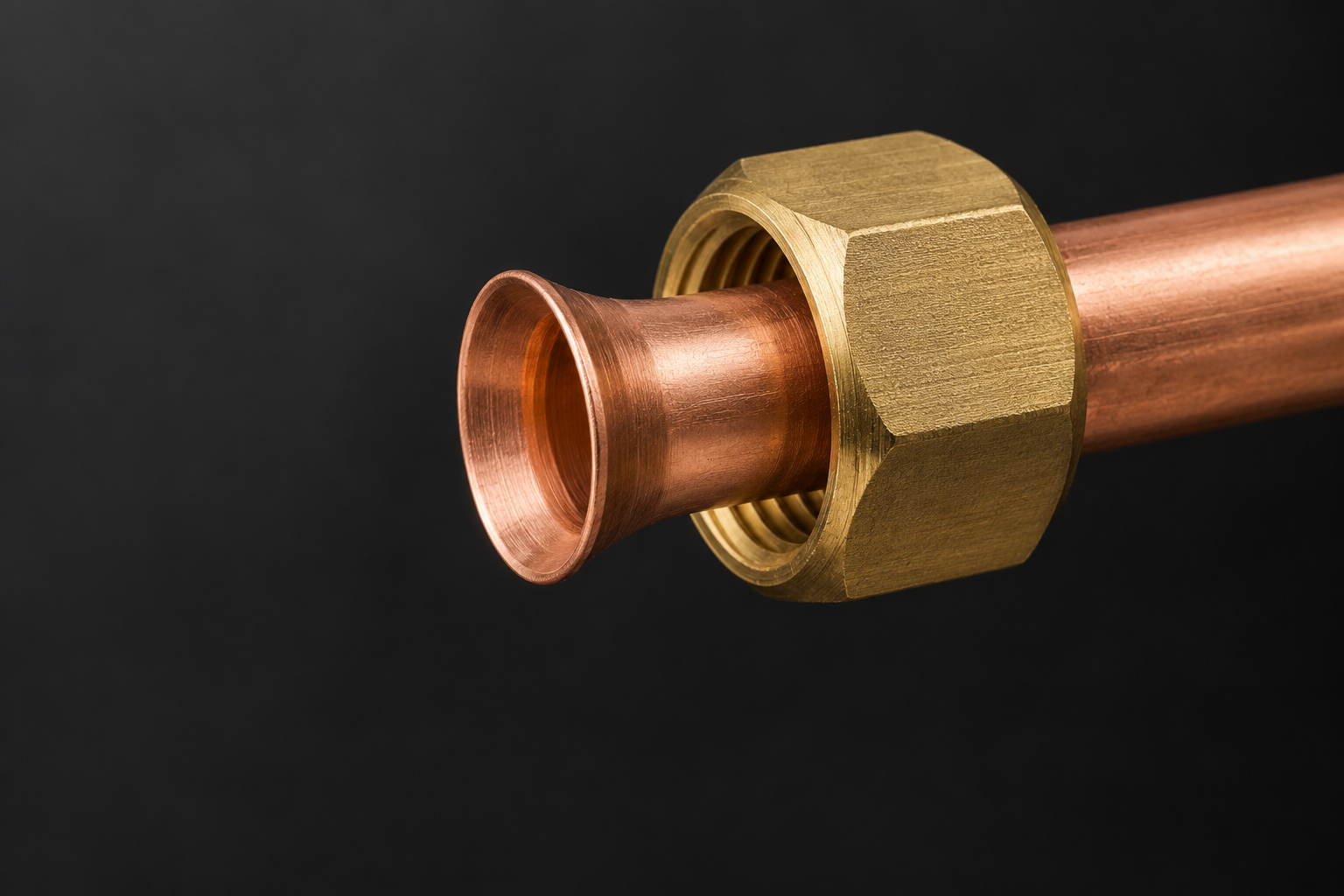

Close-up of a brass flare nut fitted behind the mechanically flared end of a copper refrigeration tube

Product preparation

Flared ends with nuts already fitted

The brass flare nut is slid onto the copper tube first. The end of the copper tube is then mechanically flared outward, preventing the nut from sliding off and creating the sealing surface used when the tube is connected to the HVAC or refrigeration fitting.

Dehydrated and cappedPlain-ended refrigeration copper tube, internally dried and securely sealed against moisture and contamination.
Dehydrated, flared and fitted with nutsA ready-to-connect HVAC or refrigeration line set, with the flare nuts already positioned and the tube ends flared.
Pair sizeTube OD
mm		Wall thickness
mm		Coil lengthTube weight
kg / coil		Sets / carton
1/4" + 3/8"6.35 / 9.520.76 / 0.8115 ft4.58 m0.5468 / 0.90808
1/4" + 1/2"6.35 / 12.700.76 / 0.8115 ft4.58 m0.5468 / 1.23958
1/4" + 5/8"6.35 / 15.880.76 / 0.8915 ft4.58 m0.5468 / 1.71708
3/8" + 5/8"9.52 / 15.880.81 / 0.8915 ft4.58 m0.9080 / 1.71708
1/4" + 3/8"6.35 / 9.520.76 / 0.8125 ft7.62 m0.9097 / 1.51074
1/4" + 1/2"6.35 / 12.700.76 / 0.8125 ft7.62 m0.9097 / 2.06224
1/4" + 5/8"6.35 / 15.880.76 / 0.8925 ft7.62 m0.9097 / 2.85664
3/8" + 5/8"9.52 / 15.880.81 / 0.8925 ft7.62 m1.5107 / 2.85664
1/4" + 3/8"6.35 / 9.520.76 / 0.8130 ft9.15 m1.0923 / 1.81403
1/4" + 1/2"6.35 / 12.700.76 / 0.8130 ft9.15 m1.0923 / 2.47623
1/4" + 5/8"6.35 / 15.880.76 / 0.8930 ft9.15 m1.0923 / 3.43023
3/8" + 5/8"9.52 / 15.880.81 / 0.8930 ft9.15 m1.8140 / 3.43023
1/4" + 3/8"6.35 / 9.520.76 / 0.8135 ft10.67 m1.2738 / 2.11533
1/4" + 1/2"6.35 / 12.700.76 / 0.8135 ft10.67 m1.2738 / 2.88763
1/4" + 5/8"6.35 / 15.880.76 / 0.8935 ft10.67 m1.2738 / 4.00003
3/8" + 5/8"9.52 / 15.880.81 / 0.8935 ft10.67 m2.1153 / 4.00003
1/4" + 3/8"6.35 / 9.520.76 / 0.8140 ft12.20 m1.4564 / 2.41863
1/4" + 1/2"6.35 / 12.700.76 / 0.8140 ft12.20 m1.4564 / 3.30173
1/4" + 5/8"6.35 / 15.880.76 / 0.8940 ft12.20 m1.4564 / 4.57363
3/8" + 5/8"9.52 / 15.880.81 / 0.8940 ft12.20 m2.4186 / 4.57363
1/4" + 3/8"6.35 / 9.520.76 / 0.8150 ft15.24 m1.8194 / 3.02132
1/4" + 1/2"6.35 / 12.700.76 / 0.8150 ft15.24 m1.8194 / 4.12442
1/4" + 5/8"6.35 / 15.880.76 / 0.8950 ft15.24 m1.8194 / 5.71322
3/8" + 5/8"9.52 / 15.880.81 / 0.8950 ft15.24 m3.0213 / 5.71322
1/4" + 3/8"6.35 / 9.520.76 / 0.8165 ft19.82 m2.3661 / 3.92931
1/4" + 1/2"6.35 / 12.700.76 / 0.8165 ft19.82 m2.3661 / 5.36391
1/4" + 5/8"6.35 / 15.880.76 / 0.8965 ft19.82 m2.3661 / 7.43021
3/8" + 5/8"9.52 / 15.880.81 / 0.8965 ft19.82 m3.9293 / 7.43021
3/8" + 3/4"Available by quotation9.52 / 19.05Confirmed at quotationProject-selectedConfirmed at quotationConfirmed at quotation
02Insulated copper tubes in pair coil, without flaring and nuts, with each end capped, for split air conditioning.

Soft-annealed C12200 copper tube conforming to ASTM B280. The tube ends are not flared and no nuts are fitted; each end is securely capped. Finished pairs are insulated and packed in cartons.

InsulationRoom A/C: 8, 9 or 10 mm · Central A/C: usually 13 mm
StandardsUL 94 HF-1 · UL 723 25/50
Pair sizeTube OD
mm		Wall thickness
mm		Coil lengthTube weight
kg / coil		Sets / carton
1/4" + 3/8"6.35 / 9.520.76 / 0.8115 ft4.58 m0.5468 / 0.90808
1/4" + 1/2"6.35 / 12.700.76 / 0.8115 ft4.58 m0.5468 / 1.23958
1/4" + 5/8"6.35 / 15.880.76 / 0.8915 ft4.58 m0.5468 / 1.71708
3/8" + 5/8"9.52 / 15.880.81 / 0.8915 ft4.58 m0.9080 / 1.71708
1/4" + 3/8"6.35 / 9.520.76 / 0.8125 ft7.62 m0.9097 / 1.51074
1/4" + 1/2"6.35 / 12.700.76 / 0.8125 ft7.62 m0.9097 / 2.06224
1/4" + 5/8"6.35 / 15.880.76 / 0.8925 ft7.62 m0.9097 / 2.85664
3/8" + 5/8"9.52 / 15.880.81 / 0.8925 ft7.62 m1.5107 / 2.85664
1/4" + 3/8"6.35 / 9.520.76 / 0.8130 ft9.15 m1.0923 / 1.81403
1/4" + 1/2"6.35 / 12.700.76 / 0.8130 ft9.15 m1.0923 / 2.47623
1/4" + 5/8"6.35 / 15.880.76 / 0.8930 ft9.15 m1.0923 / 3.43023
3/8" + 5/8"9.52 / 15.880.81 / 0.8930 ft9.15 m1.8140 / 3.43023
1/4" + 3/8"6.35 / 9.520.76 / 0.8135 ft10.67 m1.2738 / 2.11533
1/4" + 1/2"6.35 / 12.700.76 / 0.8135 ft10.67 m1.2738 / 2.88763
1/4" + 5/8"6.35 / 15.880.76 / 0.8935 ft10.67 m1.2738 / 4.00003
3/8" + 5/8"9.52 / 15.880.81 / 0.8935 ft10.67 m2.1153 / 4.00003
1/4" + 3/8"6.35 / 9.520.76 / 0.8140 ft12.20 m1.4564 / 2.41863
1/4" + 1/2"6.35 / 12.700.76 / 0.8140 ft12.20 m1.4564 / 3.30173
1/4" + 5/8"6.35 / 15.880.76 / 0.8940 ft12.20 m1.4564 / 4.57363
3/8" + 5/8"9.52 / 15.880.81 / 0.8940 ft12.20 m2.4186 / 4.57363
1/4" + 3/8"6.35 / 9.520.76 / 0.8150 ft15.24 m1.8194 / 3.02132
1/4" + 1/2"6.35 / 12.700.76 / 0.8150 ft15.24 m1.8194 / 4.12442
1/4" + 5/8"6.35 / 15.880.76 / 0.8950 ft15.24 m1.8194 / 5.71322
3/8" + 5/8"9.52 / 15.880.81 / 0.8950 ft15.24 m3.0213 / 5.71322
1/4" + 3/8"6.35 / 9.520.76 / 0.8165 ft19.82 m2.3661 / 3.92931
1/4" + 1/2"6.35 / 12.700.76 / 0.8165 ft19.82 m2.3661 / 5.36391
1/4" + 5/8"6.35 / 15.880.76 / 0.8965 ft19.82 m2.3661 / 7.43021
3/8" + 5/8"9.52 / 15.880.81 / 0.8965 ft19.82 m3.9293 / 7.43021
3/8" + 3/4"Available by quotation9.52 / 19.05Confirmed at quotationProject-selectedConfirmed at quotationConfirmed at quotation
03Insulated copper tubes in single coil, available with flared ends and nuts or with plain securely capped ends.

Individual soft-annealed C12200 copper coils conforming to ASTM B280. These are single copper-tube coils, not paired line sets. Select flared ends with brass nuts already fitted, or plain ends securely capped without flare nuts.

InsulationRoom A/C: 8, 9 or 10 mm · Central A/C: usually 13 mm
StandardsUL 94 HF-1 · UL 723 25/50
Tube sizeTube OD
mm		Wall thickness
mm		Flared ends
nuts fitted		Plain ends
securely capped		Insulation
1/4"6.350.7615–65 ft15–164 ft8–13 mm
3/8"9.520.8115–65 ft15–164 ft8–13 mm
1/2"12.700.8115–65 ft15–164 ft8–13 mm
5/8"15.880.8915–65 ft15–164 ft8–13 mm
3/4"19.050.8915–65 ft15–164 ft8–13 mm
7/8"22.231.1415–65 ft15–164 ft8–13 mm

Length availability: Flared ends with nuts are available from 15 ft to 65 ft. Plain securely capped ends are available from 15 ft to 164 ft. Packaging is confirmed for the selected size and length at quotation.

Special-order products

Available by quotation.

Specifications, quantities, production timing and delivery requirements are confirmed for each enquiry.

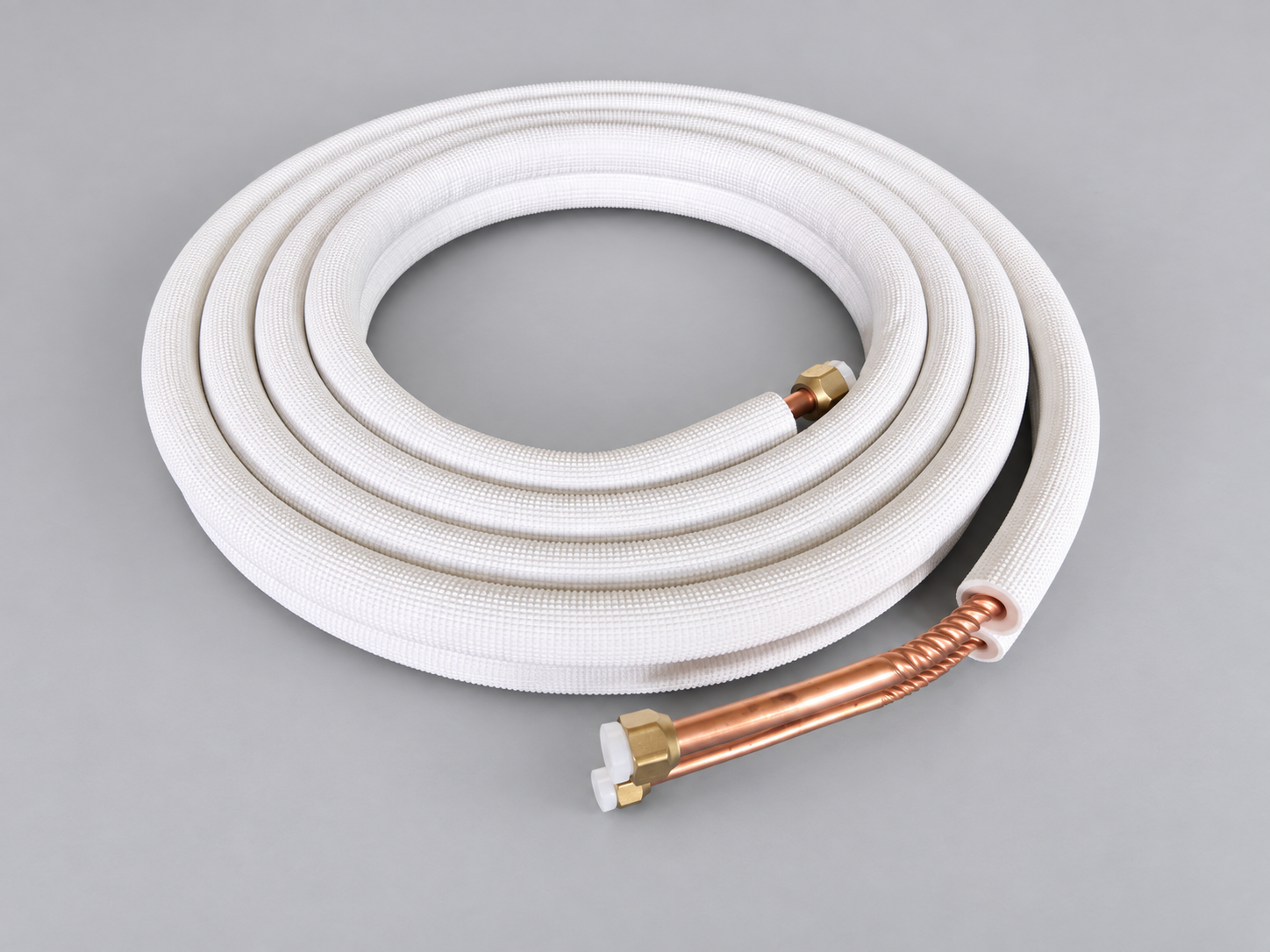

Insulated corrugated copper tubing with flare nuts and protective plugsS1

Special quotation

Insulated Corrugated Copper Coils & Line Sets

Flexible C12200 copper tubing with full-length spiral corrugation for ductless mini-split and VRF installations. Available as single coils or, by special quotation, as a 3/8" + 3/4" paired line set. Select either flared ends with brass nuts fitted or plain ends securely capped.

Copper
C12200 · ASTM B280
Single-coil sizes
1/4" · 3/8" · 1/2" · 5/8"
Paired line set
3/8" + 3/4" · available by quotation
Coil lengths
Single coils: 15 · 25 · 30 · 35 · 40 · 50 ft; paired length confirmed at quotation
Insulation
13 mm
End options
Flared with nuts · Plain securely capped
Request a special quotation

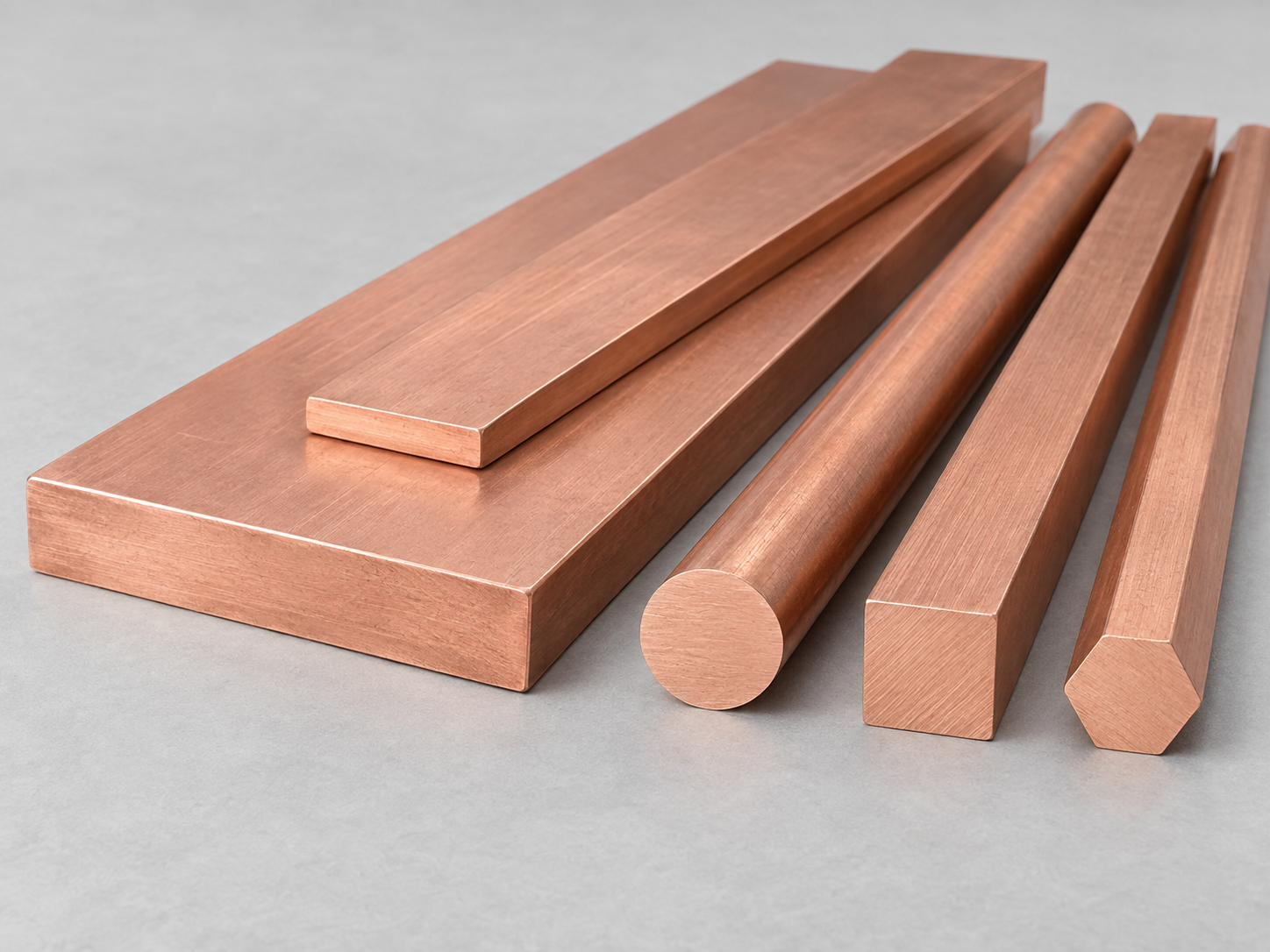

C11000 copper busbars with round, square and hexagonal copper rodsS2

Special quotation

Copper Bar and Rod

C11000 copper rod and busbar for electrical and industrial applications, including busbars, transformer connections, earthing, power-transmission equipment and control panels.

Standard
ASTM B187
Rod profiles
Round, square or hexagonal
Temper
Hard or soft annealed
Request a special quotation

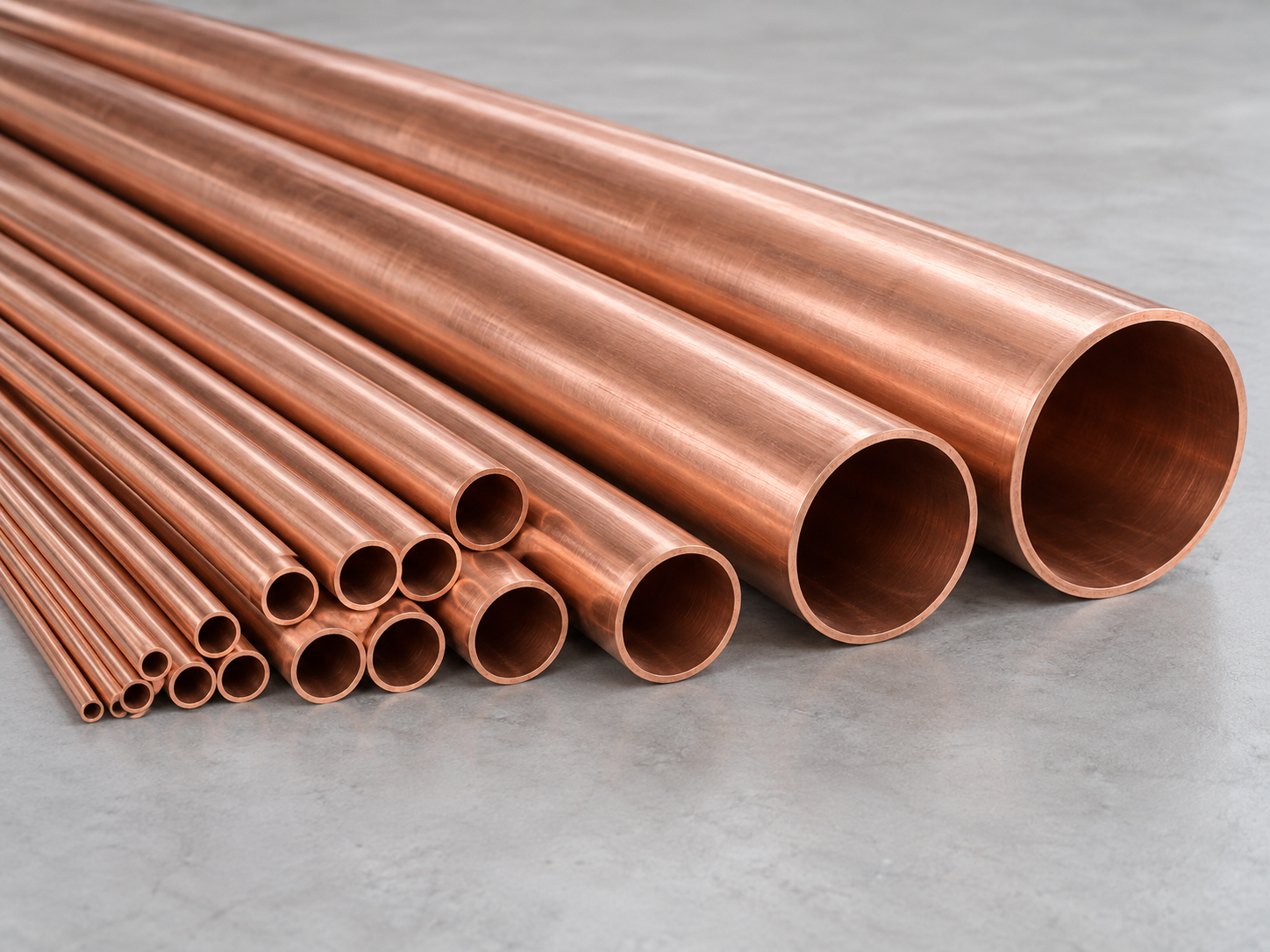

Straight hard-drawn seamless copper tubes in a range of outside diametersS3

Special quotation

Industrial, Fabricating & Manufacturing Copper Tube

Straight-length hard-drawn seamless copper tube for industrial, fabrication, manufacturing, mechanical and processing applications. Available to ASTM B88 in Types K, L and M, or to ASTM B75 with dimensional and temper requirements confirmed for each enquiry.

Industrial Fabrication & Manufacturing
  • Heat Exchangers & Condensers
  • OEM Components
Mechanical & Process Piping
  • Non-Potable Industrial Water
  • Pneumatic & Hydraulic Lines
  • HVAC & Refrigeration (ACR)Types K and L are often used in larger industrial chilling and mechanical-refrigeration processes governed by ASME B31.5 or CSA B52.
Standards
ASTM B88 · ASTM B75
Size range
1/4" to 3"
B88 types
K · L · M
Lengths
12 ft & 20 ft
Request a special quotation
02 / Product quality

Supporting documentation

Clear specifications.
Evidence available.

Copper-tube and insulation documentation can be provided for qualified commercial review.

ASTM B280-23Copper tube specificationDocumentation available
UL 94-2024Insulation flammabilityReport available
UL 723-2025Surface burning characteristicsReport available

Supporting independent test reports are available upon request.

03 / Supply

A practical supply programme

Practical supply,
clearly specified.

ICS Copper works with Canadian distributors and HVAC customers to arrange product specifications, packaging and shipment requirements.

Container shipments are available, with production and delivery schedules agreed around the customer’s requirements.

01

Factory aligned

Product configuration agreed before production.

02

Shipment ready

Coiled, protected and packed for distribution.

03

Documentation

Supporting test reports are available upon request.

Commercial enquiries!

Let’s discuss your
copper-tube programme — select products below!

Pricing, product samples, test reports and supply planning are available for qualified distribution and HVAC enquiries.
